APC (SYA16K16I) SYMMETRA LX 16KVA > 16KVA NW1 TOWER, 220/230/240V OR 380/400/415V

Power & UPS > UPS Systems

  • Brand: APC
  • Category: UPS Systems
  • SKU: SYA16K16I
  • MPN: SYA16K16I

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or…

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, Hardwire, 7.5 min, 20.3 min, SYBT5

APC (SYA16K16I) SYMMETRA LX 16KVA > 16KVA NW1 TOWER, 220/230/240V OR 380/400/415V

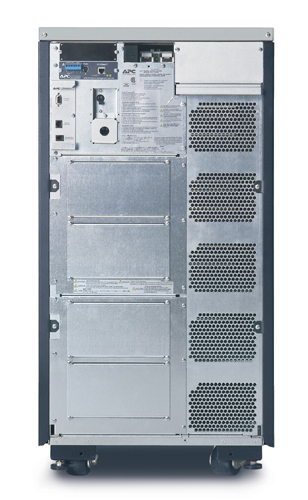

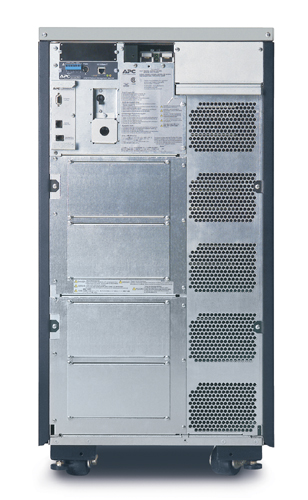

Click or hover over image to enlarge

Brand:APC
MPN:SYA16K16I

Part #: SYA16K16I

Search this part on Google

Typical backup time at full load

7.5 min

Typical backup time at half load

20.3 min

Replacement battery cartridge

SYBT5

Output power capacity

16 kVA

Output power

11200 W

Emergency Power Off (EPO)

Yes

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

53926.34

Returns & Warranty

Price on Application

Contact us for pricing

Sales will confirm seat count, term, and volume pricing before order.

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

APC (SYA16K16I) SYMMETRA LX 16KVA > 16KVA NW1 TOWER, 220/230/240V OR 380/400/415V

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Key features

  • Output power capacity: 16 kVA
  • Output power: 11200 W
  • Emergency Power Off (EPO): Yes
  • AC outlet types: Hardwire
  • Typical backup time at full load: 7.5 min
  • Typical backup time at half load: 20.3 min
  • Replacement battery cartridge: SYBT5
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Weight: 308 kg
  • Harmonized System (HS) code: 85078000
  • Total carbon footprint (kg of CO2e): 53926.34
  • I/O ports: Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
  • Interface: DB-9 RS-232, Smart-Slot
  • Output connections: (1) Hard Wire 3-wire (H N + G)
  • Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Dimensions (WxDxH): 480 x 730 x 940 mm
  • Nominal output voltage: 230 V
  • Output voltage note: Configurable for 220: 230 or 240 nominal output voltage
