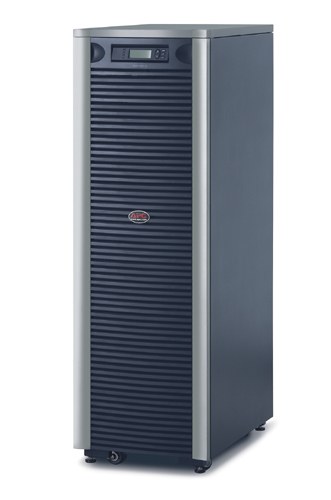

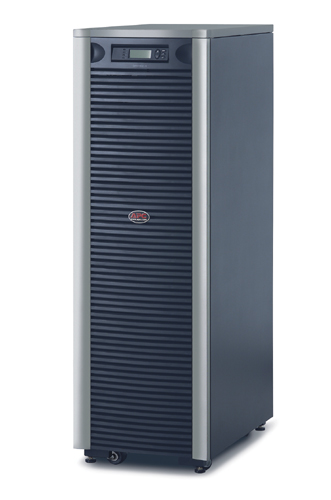

APC (SYA16K16IXR) SYMMETRA LX 16KVA > 16KVA NW1 EXT. RUN TWR, 220/230/240V OR 380/400/415V
Power & UPS > UPS Systems
- Brand: APC
- Category: UPS Systems
- SKU: SYA16K16IXR
- MPN: SYA16K16IXR
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower,…
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V, 16 kVA, 11200 W, Hardwire, 24.7 min, 55.4 min, SYBT5
Click or hover over image to enlarge
Compatibility
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE
Typical backup time at full load
24.7 min
Typical backup time at half load
55.4 min
Replacement battery cartridge
SYBT5
Output power capacity
16 kVA
Output power
11200 W
Emergency Power Off (EPO)
Yes
Audible alarm(s)
Yes
Price on Application
Contact us for pricing
Sales will confirm seat count, term, and volume pricing before order.
Available to Order
Ships in 1–5 business days
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
APC (SYA16K16IXR) SYMMETRA LX 16KVA > 16KVA NW1 EXT. RUN TWR, 220/230/240V OR 380/400/415V
Key features
- Output power capacity: 16 kVA
- Output power: 11200 W
- Emergency Power Off (EPO): Yes
- Audible alarm(s): Yes
- AC outlet types: Hardwire
- Typical backup time at full load: 24.7 min
- Typical backup time at half load: 55.4 min
- Replacement battery cartridge: SYBT5
- Compatibility: C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 55024,EN 60950,GOST,IEC 60950,VDE
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Weight: 503.6 kg
- Package weight: 535.5 kg
- Harmonized System (HS) code: 85078000
- Total carbon footprint (kg of CO2e): 56690.15
- I/O ports: (1) Hard Wire 3-wire (H N + G) Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
- Battery type: Lead-Acid
- Interface: DB-9 RS-232,Smart-Slot
- Output connections: (1) Hard Wire 3-wire (H N + G)
- Input connection type: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Dimensions (WxDxH): 483 x 726 x 1516 mm
- Nominal output voltage: 230 V
- Output voltage note: 220: 230, 240
- Nominal input voltage: 230-400 V
- Package dimensions (WxDxH): 599 x 997 x 1880 mm
