DYNAMIX FTTH Compact Wall Outlet 1 Port SC Simplex / LC Duplex
FTTH Compact Wall Outlet 1 Port SC Simplex / LC Duplex Up to 2 Fibres Unloaded
- Brand: Dynamix
- Category: Tools & Installation
- SKU: WO001
- MPN: WO001
DYNAMIX FTTH Compact Wall Outlet 1 Port SC Simplex / LC Duplex
The compact termination box supplied by DYNAMIX is designed to be use in residential and business applications for the termination of up to 2x fibres.
Click or hover over image to enlarge
Depth
116mm
Width
85mm
Colour
White
Height
23mm
Material
PC + ABS
PARAMETERS
VALUE
N° of Port
1
Compliant to
RoHS, REACH, SvHC
Comsys Price
In Stock
100 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $3.74 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX FTTH Compact Wall Outlet 1 Port SC Simplex / LC Duplex

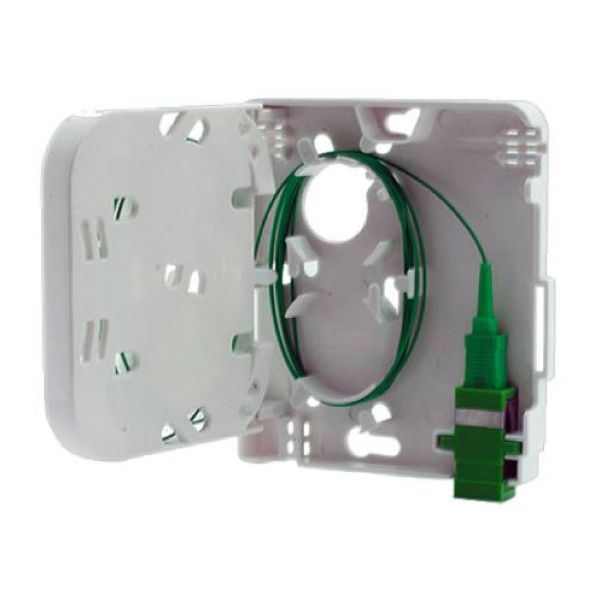

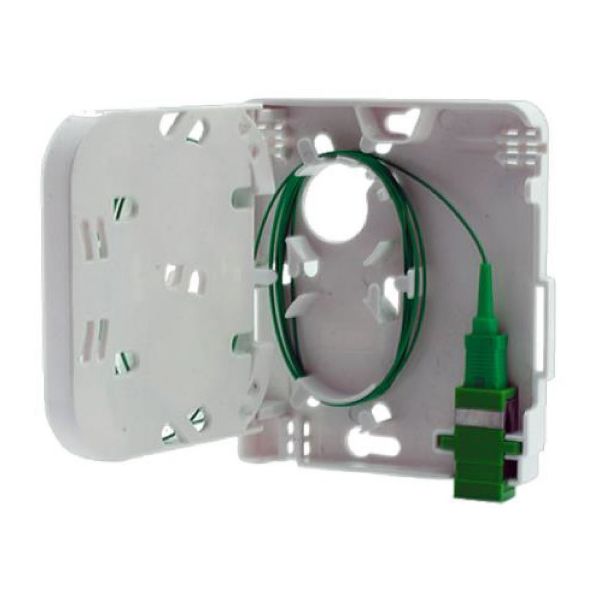

The compact termination box supplied by DYNAMIX is designed to be use in residential and business applications for the termination of up to 2x fibres. This wall box enables the installation of either a single Sirocco Blown Tube cable using up to a 1x fibre blown unit or one 2x fibres rugged cable to be spliced to 1x SC pigtail (PC or APC) or 1x LC duplex, which connects to adapters at the base of the unit. This box is supplied with a transparent plastic cover on the front adaptor side, providing major protection to the installed fibres. The unit can be quickly installed within an office, house or communication room environment.
FEATURES:
- SC Simplex Adapter type.
- Ergonomic Design.
- Flip tray to allow access to pigtails and Cable entry.
- Removable cover for easy access.
- Unit manufactured with fire resistant
- UL94-VD Rated Material.
- Transparent lid cover for shutter
APPLICATION:
- FTTH / FTTx Networks.
- Data communication Networks.
- Indoor Application
Inc GST
$14.94
