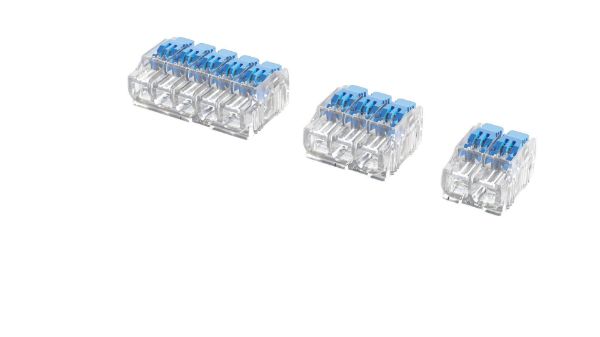

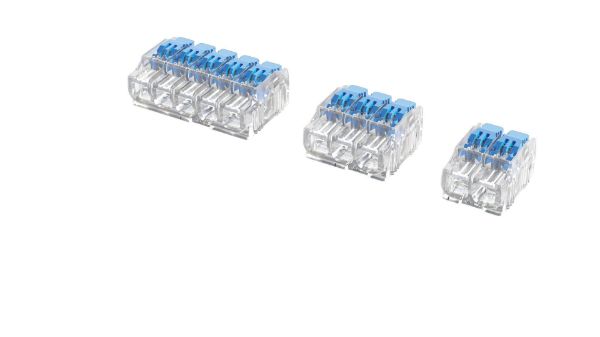

IDEAL INDUSTRIES 2, 3 and 5 Port Wire Connector 32A Gen II Lever
2 3 & 5 Port Wire Connector 32A GenII Lever Kit 0.2 to 4.0 2 Wire Diameter
- Brand: Ideal Industries
- Category: Cables & Connectivity
- SKU: IDL30-0099
- MPN: IDL30-0099
IDEAL INDUSTRIES 2, 3 and 5 Port Wire Connector 32A Gen II Lever
GEN II LEVER WIRE CONNECTORS The IDEAL INDUSTRIES Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.
Click or hover over image to enlarge
Comsys Price
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $8.34 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
IDEAL INDUSTRIES 2, 3 and 5 Port Wire Connector 32A Gen II Lever
GEN II LEVER WIRE CONNECTORS
The IDEAL INDUSTRIES Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.
It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.
FEATURES:
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector – for solid, stranded and flexible wires
- Innovative levers – opens in the opposite direction of insertion points
- Compact design – suits tight spaces
- Easy to use - no need to lift the levers when using on solid wire
- Continuity check port - for testing
- Clear shell - allows for verification of connection
- Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect
- Wire clamping range:
- 0.2mm2 to 4.0mm2 (24 - 12AWG for solid and rigid stranded wires (7 strands)
- 0.14mm2 to 4.0mm2 (24 - 12AWG) for flexible wires
- Ratings:
- IEC 60998: 32A | 450V | 85°C (ambient)
- UL 486C: 20A | 600V | 105°C (working)
- Strip Length: 11-12mm | 0.45"
- BS 7671:2018 (18th Edition), IEC 60998 and UL 486C compliant
- CE, UKCA, UL and ENEC approved
Inc GST
$33.34
