StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA…

Name: STARTECH.COM 4-PORT M.2 TO SATA ADAPTER CARD, M.2 TO SATA EXPANSION CARD, 2 YR
Brand: STARTECH
SKU: 4P-SATA-M2-ADAPTER
Price: 86.24 NZD
Availability: BackOrder

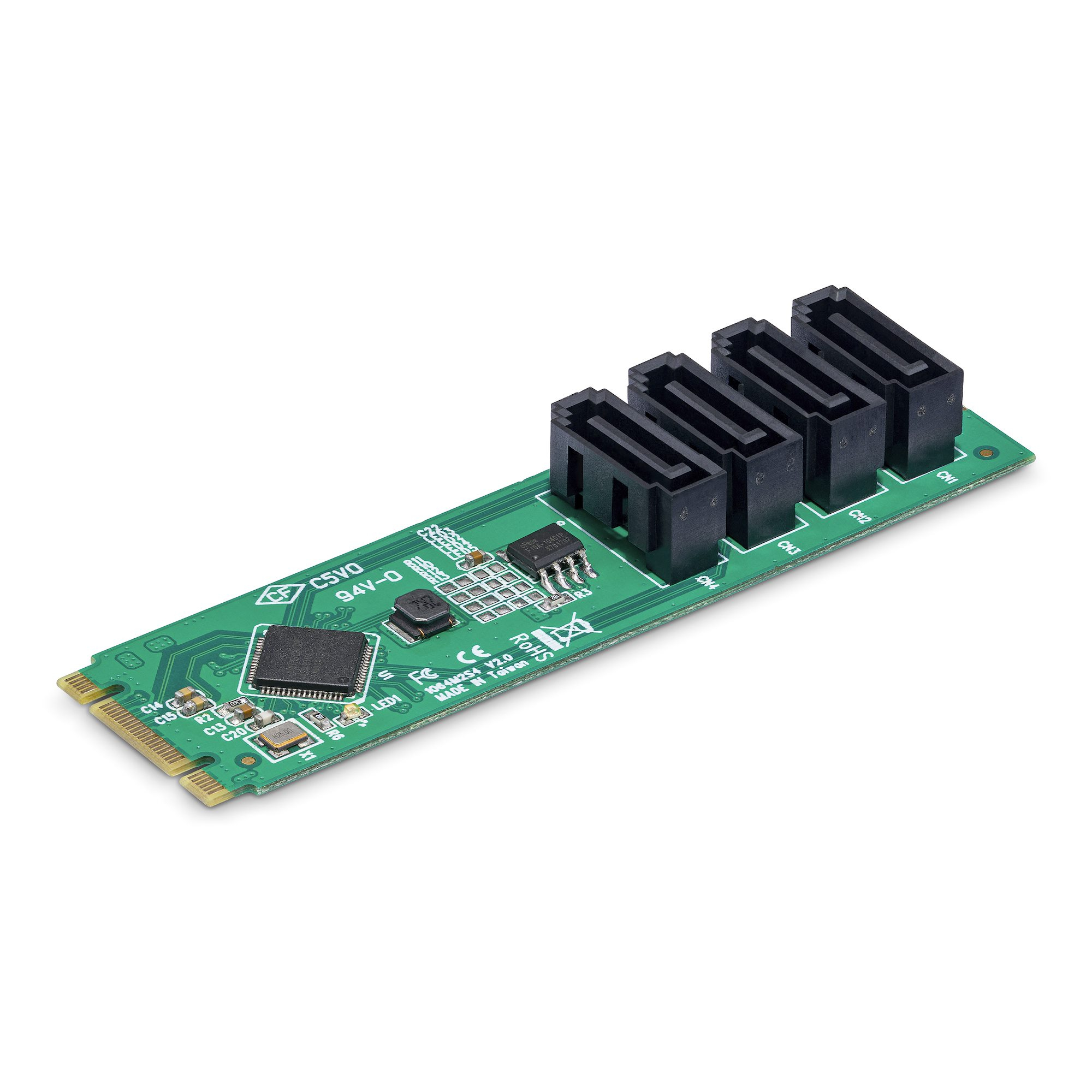

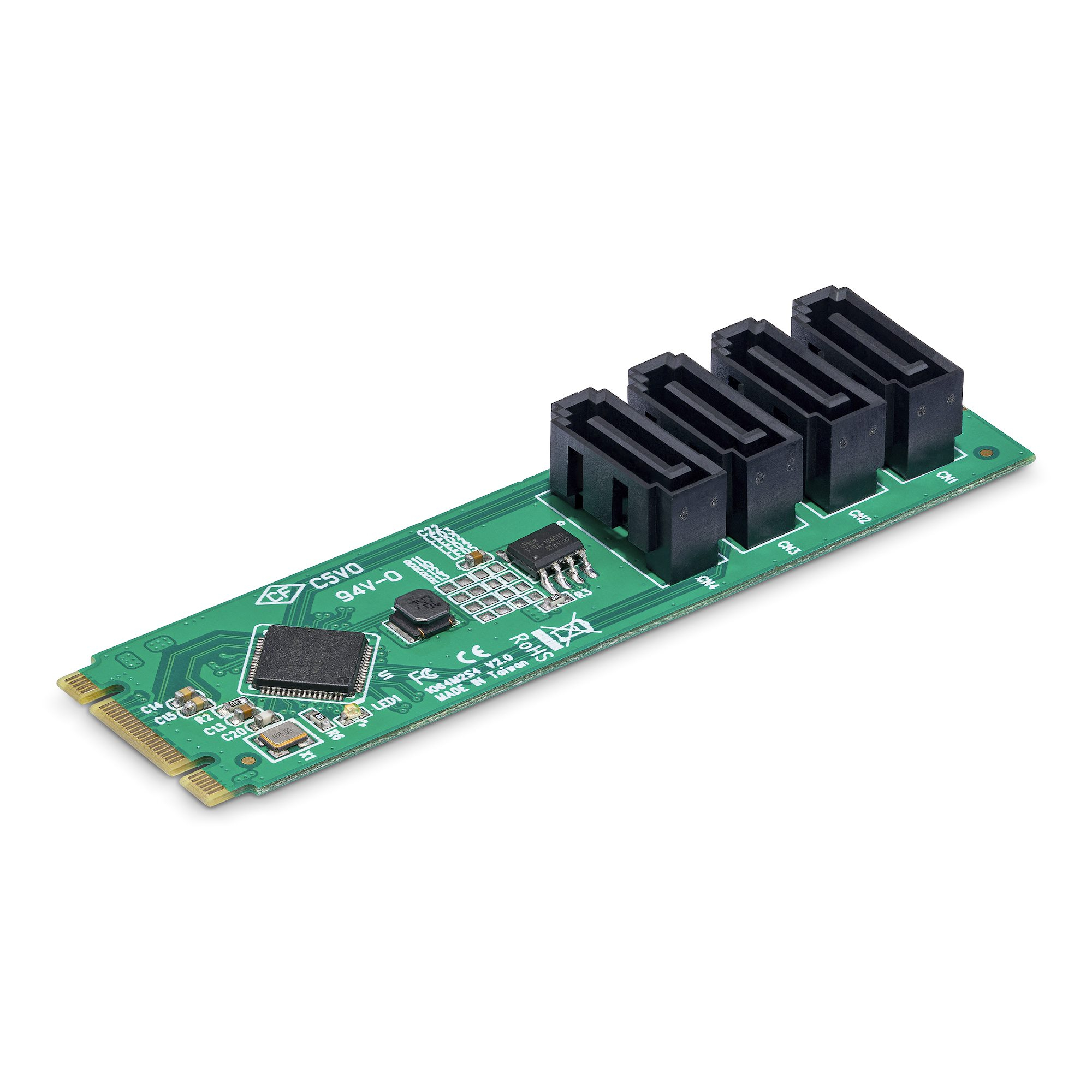

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux, M.2, SATA, PCI 3.0, Green, Power, 68555579 h

Click or hover over image to enlarge

Brand:STARTECH

MPN:4P-SATA-M2-ADAPTER

Part #: 4P-SATA-M2-ADAPTER

Search this part on Google

Internal

Yes

Product colour

Green

LED indicators

Power

Mean time between failures (MTBF)

68555579 h

Hot-swap

Yes

Chipset

ASMedia ASM1064

S.M.A.R.T. support

Yes

TRIM support

Yes

Returns & Warranty

Comsys Price

$86.24

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $21.56 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

STARTECH.COM 4-PORT M.2 TO SATA ADAPTER CARD, M.2 TO SATA EXPANSION CARD, 2 YR

Install four SATA drives via one M.2 slot for a high-density storage solution

Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.

Cost-Effective Storage Expansion

This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.

Compatibility

The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.

Applications

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.

ASMedia ASM1064 Chipset

The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.

Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots

Note: Not compatible with SATA-based M.2 drive slots

The StarTech.com Advantage

Key features

Host interface: M.2
Output interface: SATA
Expansion card standard: PCI 3.0
Internal SATA ports quantity: 4
Port multiplier: Yes
Internal: Yes
Product colour: Green
LED indicators: Power
Mean time between failures (MTBF): 68555579 h
Hot-swap: Yes
Chipset: ASMedia ASM1064
S.M.A.R.T. support: Yes
TRIM support: Yes
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported: Yes
Compliance certificates: RoHS
Width: 22 mm
Depth: 80 mm
Height: 11 mm
Weight: 8 g
Cables included: SATA
User guide: Yes
Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 142 g
